To fully satisfy your requirements we suggest that you consider the following characteristics when ordering.

WIRE
Diameter and quality (black, galvanized, AISI type 304, aluminium, copper, brass)

LIGHT SPACING
Always considered in mm, even when not specified. Light spacing is the empty space in the middle of the square of mesh:



For rectangular mesh the parallelism of the sides of the mesh with the sides of the panel must be indicated:

Example no. 1:
long side of mesh mm. 60, parallel to short side of panel mm 1000.

Example no. 2:
short side of mesh mm. 30, parallel to short side of panel mm 1000.

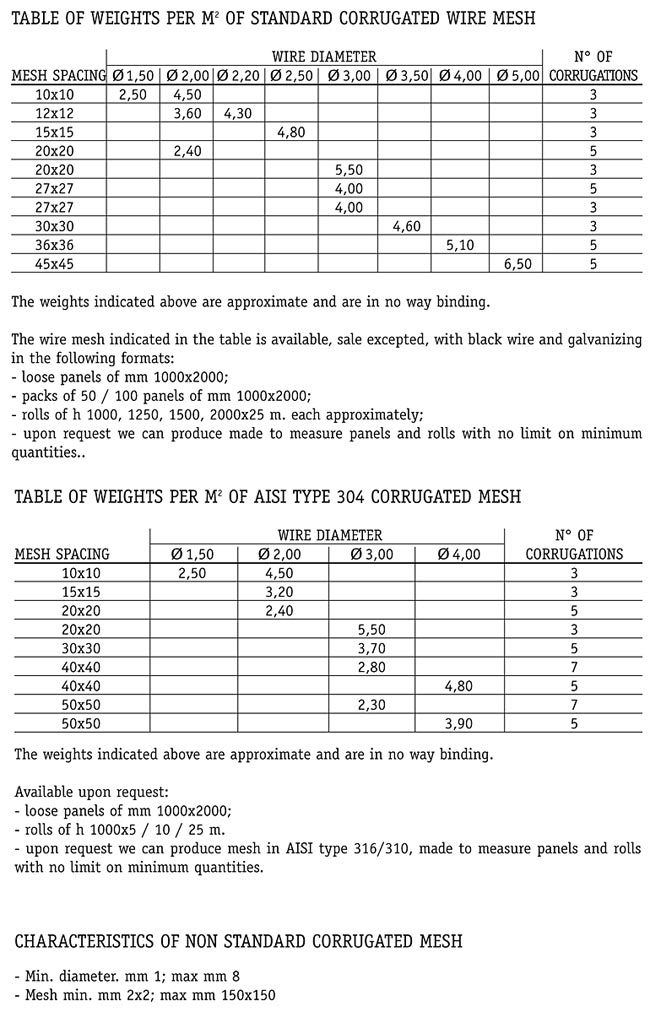

TYPES OF CORRUGATION
Corrugated mesh is produced by twisting together drawn wires that have been corrugated beforehand, by being passed through two gears that allow for perfect corrugation. In some cases it is possible to create mesh with the same light spacing but with different corrugation.


DIAMOND SHAPED CORRUGATED MESH
The following item is only manufactured to order and is supplied in rolls or panels.
Square diamond mesh can be produced with minimum spacing of 10 mm with diameter 1.5, in panels with maximum dimensions of 1000x2400.

Square diamond shaped mesh
Diamond shaped mesh


PLASTIC COATED CORRUGATED MESH

Technical specifications:
Side of mesh from mm 50x50 light diamond positioned.
Inner wire: mm 2.70 galvanized/mm 4.00 plastic coated surface
Theoretical weight: kg/m² 2.40
Colours: green, white, brown, other colours are available upon request.
Sizes:
Maximum height: wire mesh with borders mm 2000 – decorated wire mesh mm 1500
Can also be produced with black, galvanized and AISI type 304 wire

Technical specifications:
Side of mesh from mm 50x50 light diamond positioned.
Black, galvanized and AISI type 304 mm 4.00 wire
Theoretical weight: kg/m² 4.70
Sizes:
Maximum height: wire mesh with borders mm 2000 – decorated wire mesh mm 1500

Wire mesh with borders
Decorated wire mesh


These two articles allow you to have special coloured fencing which is, at the same time strong and extremely resistant.
